Preschool of Aknaibich / BC architects + MAMOTH

  • Architect:BC architects + MAMOTH
  • Location:Aknaibich, Morocco
  • Date:2014
  • Area:55 sqm Building + 160 sqm Landscaping
  • Client:Community of Aknaibich trough the Goodplanet Foundation
  • Budget:25 000 €



Preschool of Aknaibich – Description from BC architects + MAMOTH.

The preschool of Aknaibich is only 1 classroom, nevertheless a holistic architectural design, incorporating community dynamics, bioclimatics and a new vernacular style.

Aknaibich is a town in transition: the eastern old town is made of earthen constructions, sinusoid roads and narrow alleys, while the western part exists of modern, plot-based concrete houses built by rural-urban emigrants. In need of educational infrastructure, Goodplanet foundation presided by French photograher Yann-Arthus Bertrand aims to install a preschool with bioclimatic functioning, as an extension to the existing concrete school building in the modern part of town.

New vernacular architecture. © Frank Stabel
© Frank Stabel

After a workshop with the Aknaibich community, it was seen fit to be inspired by the old town, and hence to create a dialogue with the existing modern school infrastructure. It’s style could be called a new vernacular, inspired on local typologies, materials and techniques, while at the same time having a contemporary look, performant bio-climatic functioning and earthquake proof design.

New vernacular architecture. © Thomas Joos
© Thomas Joos

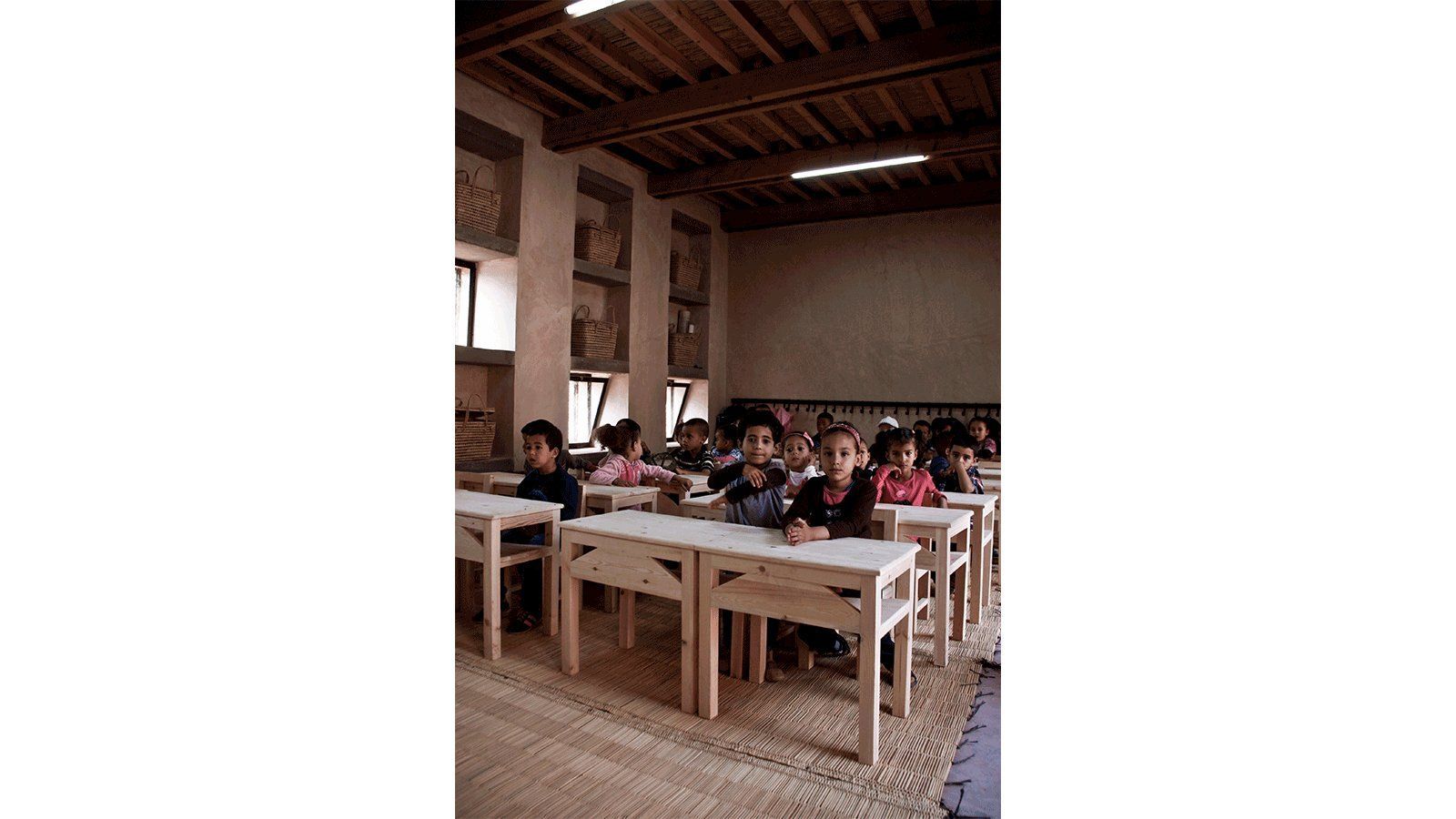

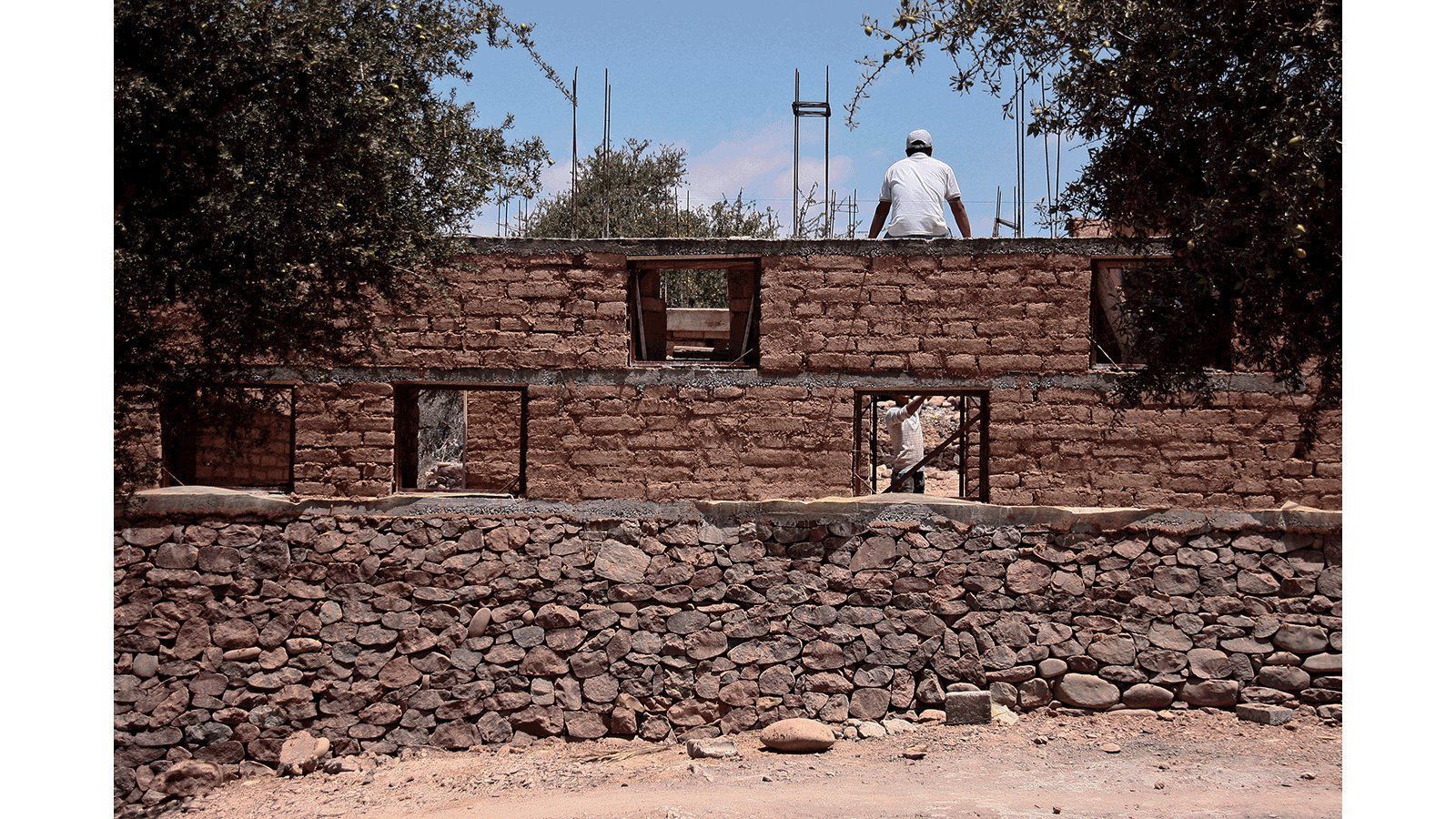

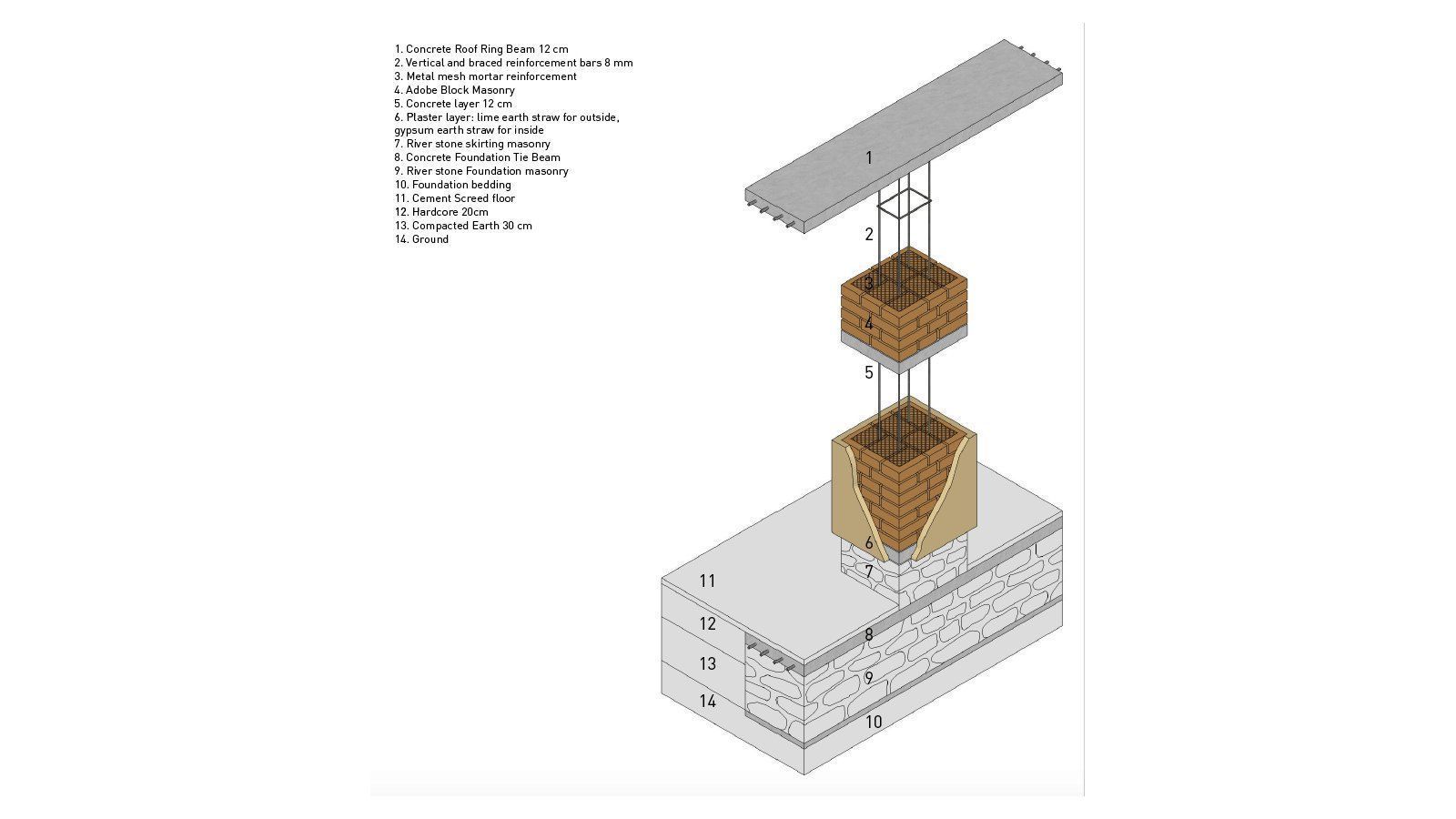

The preschool of Aknaibich has traditionally inclined foundations of locally sourced nature stone, with adobe walls, a wood-and-earth flat roof and rammed earth enclosure walls. The exterior finishing is done with a “tamelass” render, a mix of 2 earths, straw and sand, while the interior finishing is made of polished “nouss-nouss”, a “half-half” of earth and gypsum to create a breathable interior plaster which diffuses indirect sunlight.

New vernacular architecture. © Frank Stabel
© Frank Stabel

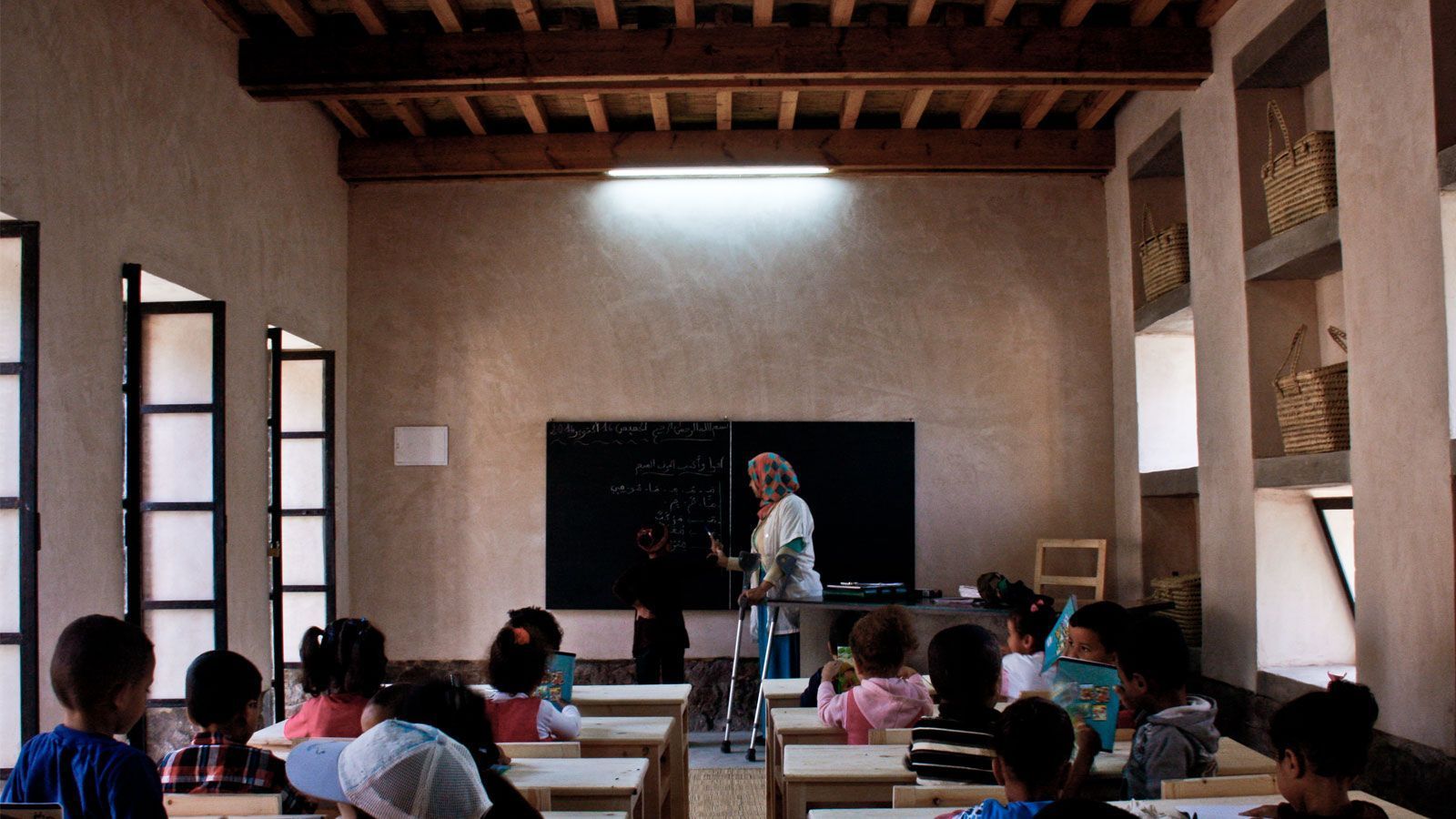

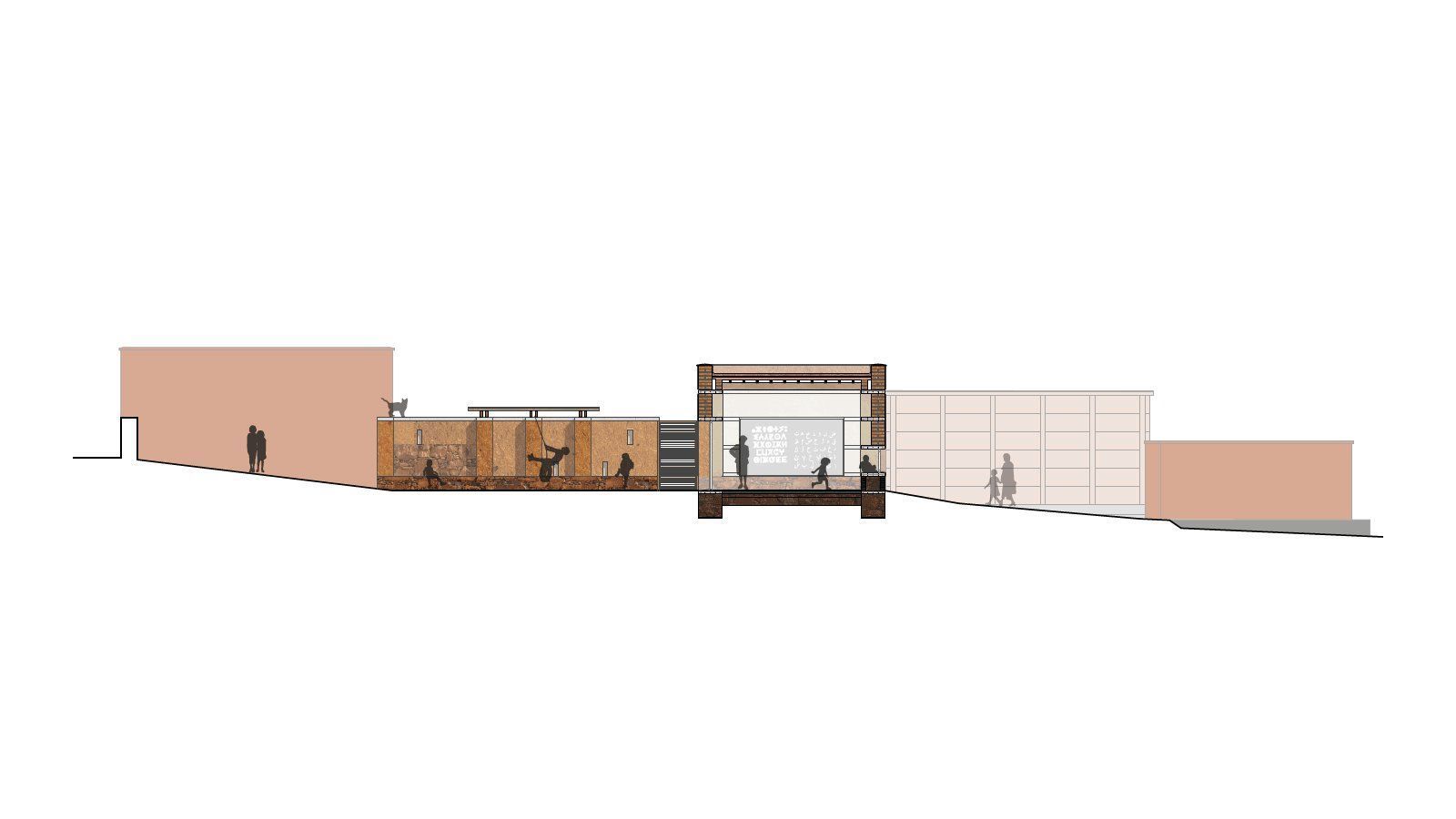

The east and west façades which have harsh low-sun impacts are doubled-up with a cavity wall for insulation, while the south façade has deep, small windows and a big thermal mass, making the building cool during the day, but warmer through the night until the morning. The north façade has been maximally opened up with glass doors to allow indirect sunlight to enter the room.

New vernacular architecture. © Frank Stabel
© Frank Stabel

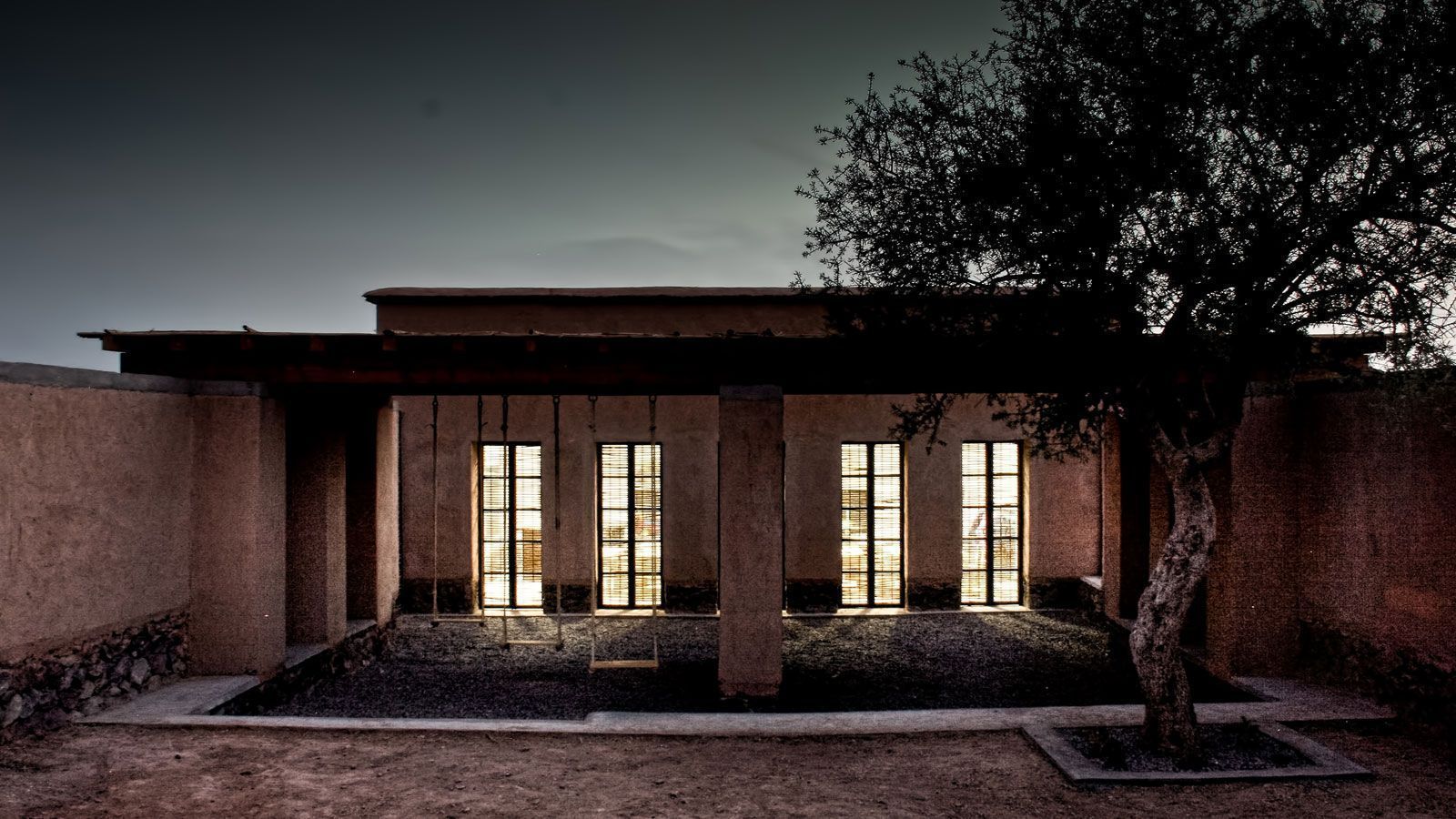

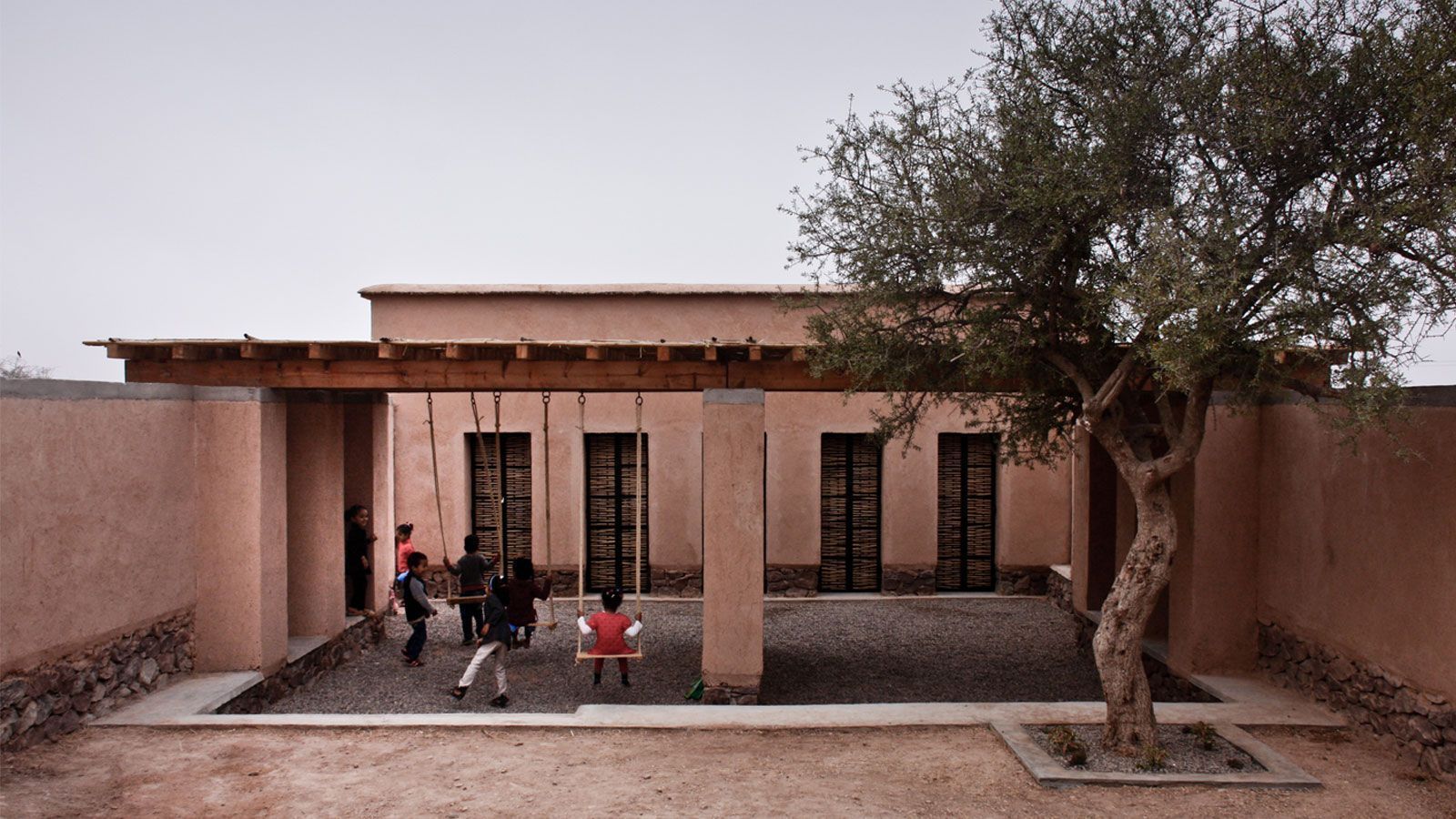

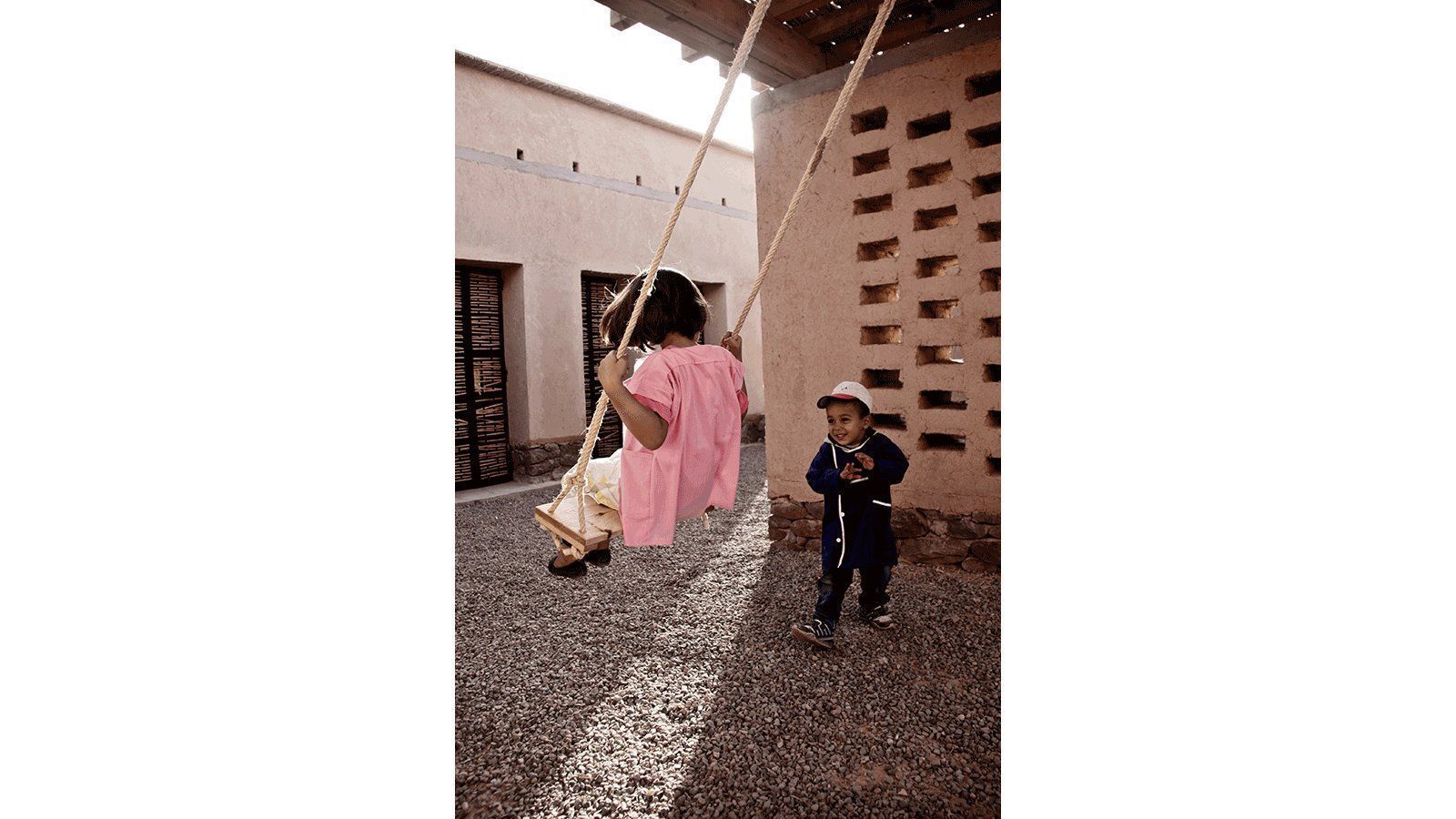

The classroom links to the playground just outside, which can be read as the playground for the smaller ones (3-6 years) as opposed to the bigger courtyard serving the rest of the school students. This playground has a pergola with playing and sitting infrastructure, which can be used as an external classroom for storytelling and other activities.

New vernacular architecture. © Frank Stabel
© Frank Stabel

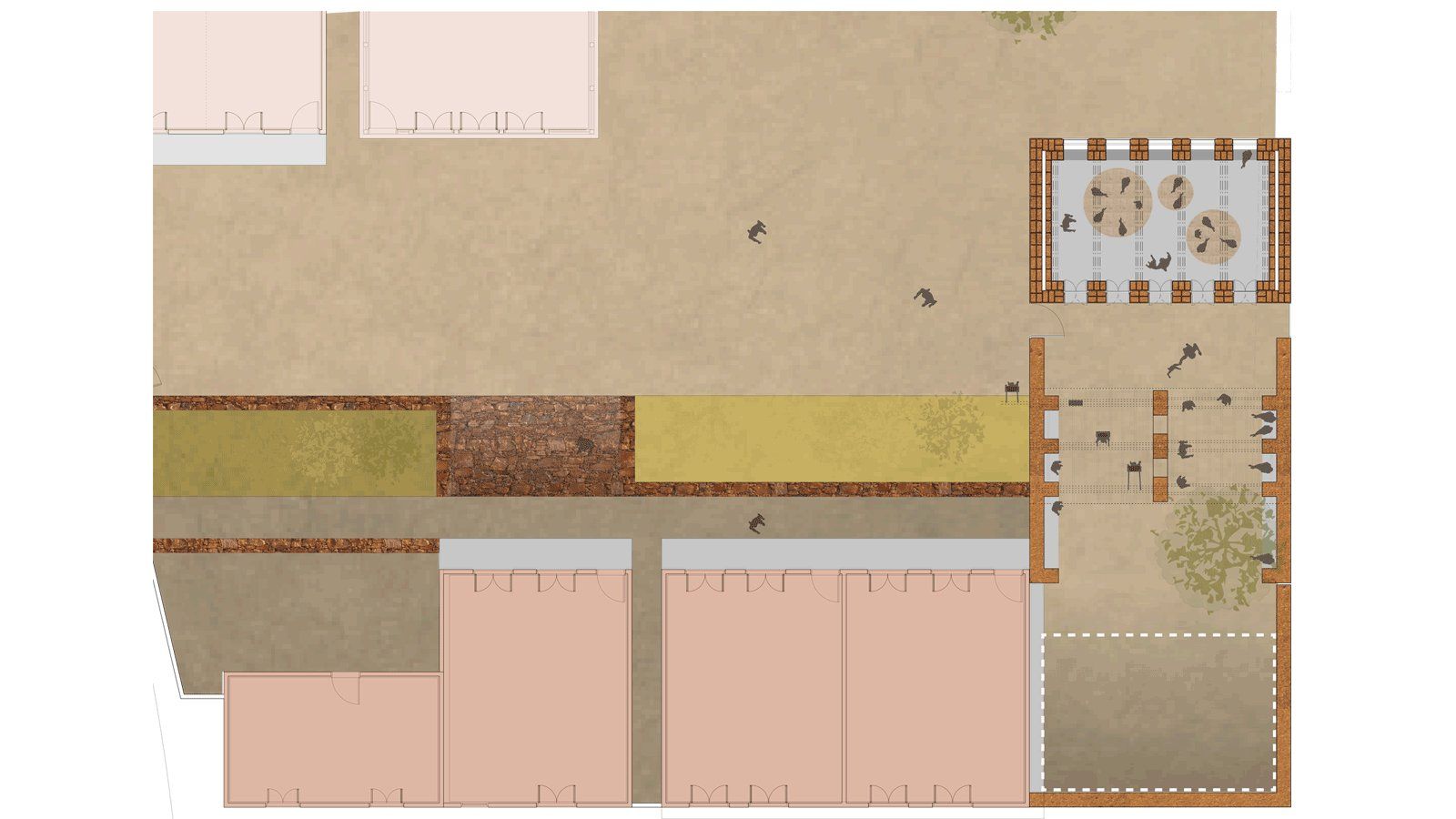

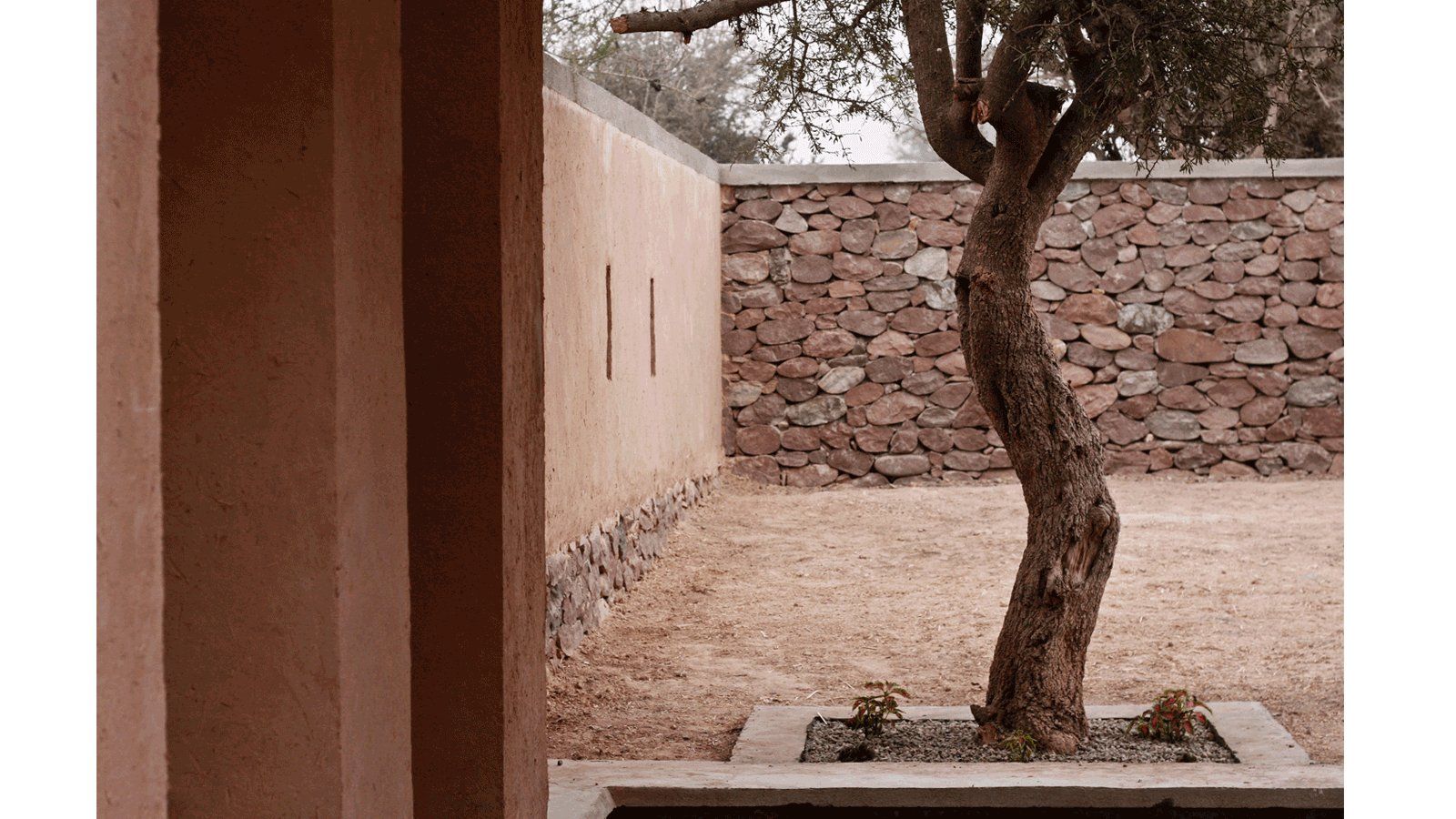

As a site implementation, the preschool borders the school plot, hence defining the site without the explicit use of compound walls. It is neatly located in between three existing argan trees, which are important to preserve in the quite deforestated new part of town.

New vernacular architecture. Courtesy of BC Architects
Courtesy of BC Architects

By following the grid-like layout of the existing school rooms, the Preschool of Aknaibich creates an interesting juxtaposition of the ‘new vernacular’ next to the ‘existing modern’, maybe inspiring the way forward for future constructions within the community of Aknaibich.

New vernacular architecture. © Frank Stabel
© Frank Stabel



MORE CREDITSLocal material consultancy: BC studies + MAMOTH. Community participation and organisation: BC studies, MAMOTH and the foundation Goodplanet. Cooperation: Frank Stabel, Thomas Joos, Alina Negru, Carole Fournier and Elisabetta Carnevale. Financial support: Private funds managed by the foundation Goodplanet.
